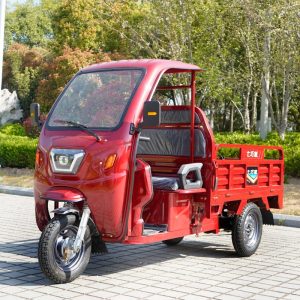

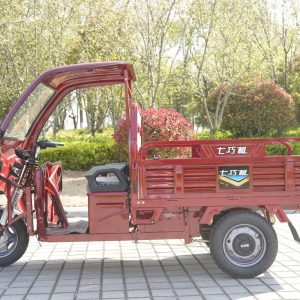

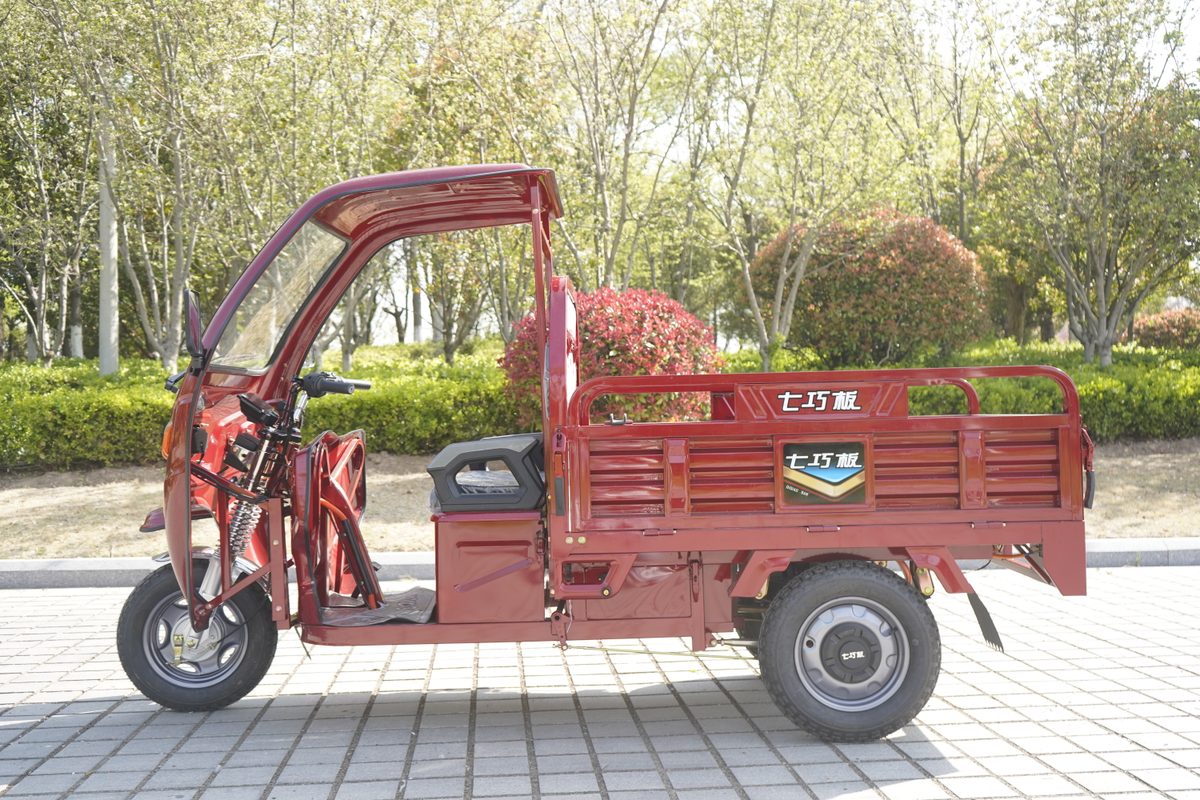

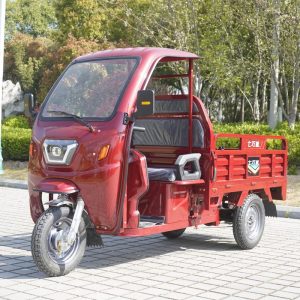

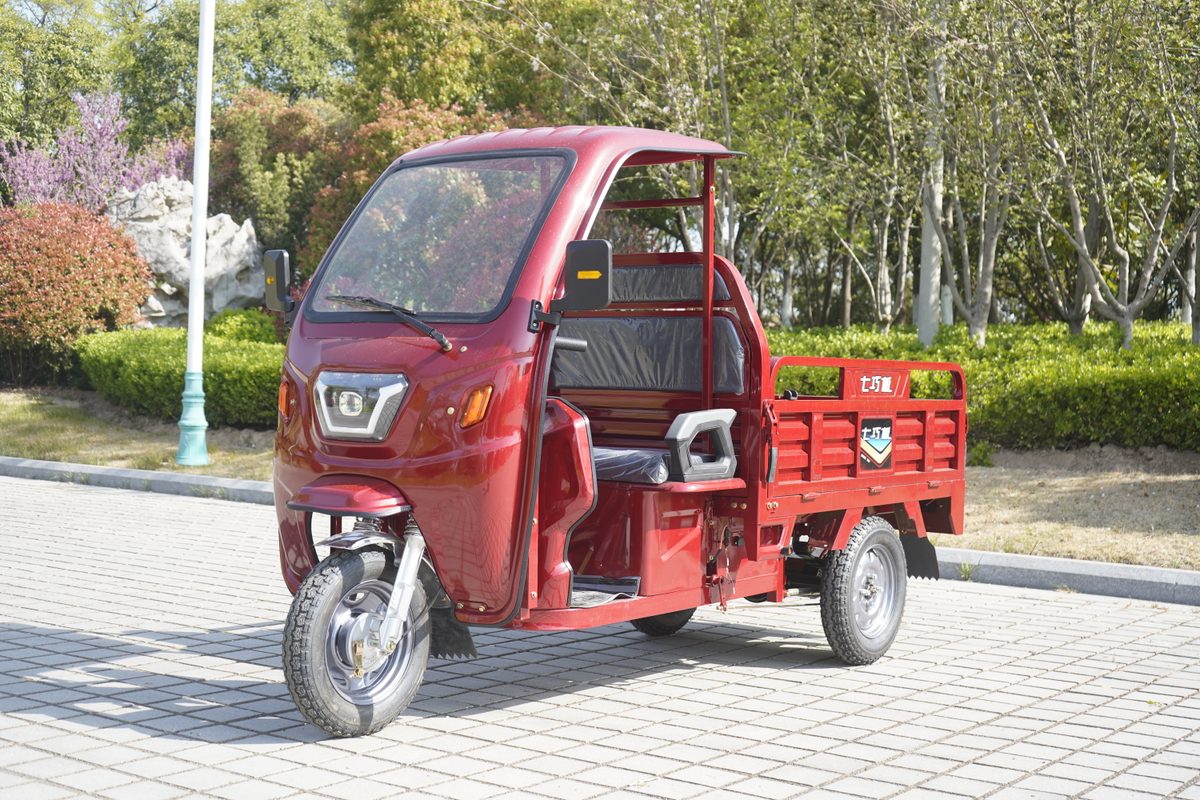

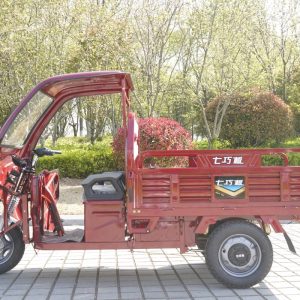

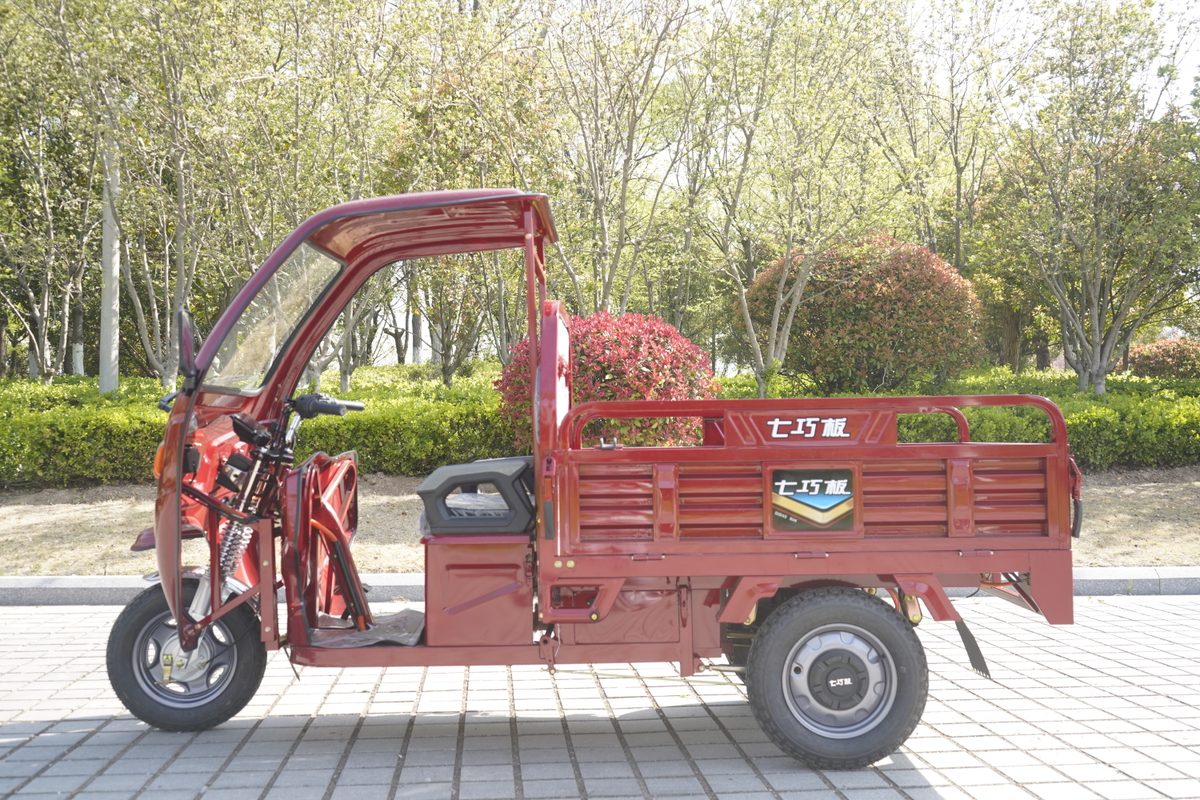

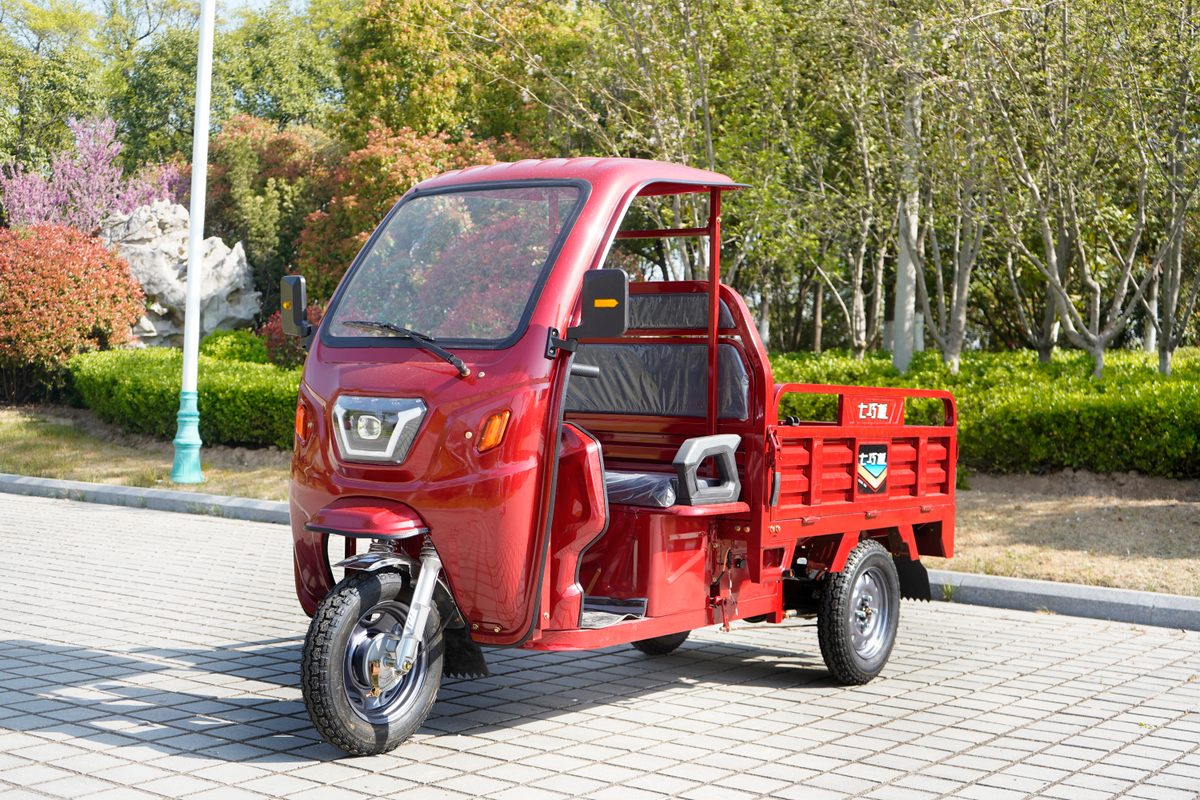

Zhibo 15/16 Canopy

Canopy passenger/cargo tricycle — available in ZB1524E and ZB1624 variants, both EEC L2e-U certified. Sun/rain canopy, 1500W/3000W motor options.

Category: Passenger Tricycles

Get Quote / Inquiry

The Zhibo 15/16 Canopy series offers EEC-certified (L2e-U) tricycles with a factory-fitted weather canopy — ideal for passenger transport and sheltered cargo in sun-intense markets. Two variants share the same chassis philosophy with different dimensions and payload:

Variant A — ZB1524E Canopy

EEC CERTIFIED
EU Whole Vehicle Type Approval

Vehicle Model	ZB1524E Canopy
EEC Type-Approval No.	*e5168/20130022702**
Version	02
EU Vehicle Category	L2e-U
Dimensions (L×W×H)	2785 × 1060 × 1690 mm
Wheelbase	2025 mm
Rear Track Width	850 mm
Unladen Mass	240 kg
Actual Mass	405 kg
Max Permissible Mass	630 kg
Front Axle Max Load	210 kg
Rear Axle Max Load	420 kg
Axles / Wheels	2 axles / 3 wheels
Braking System	Drum brake
Max Speed	40 km/h / 25 km/h
Motor	Nanpu 1500W / 72V
Battery	72V/58Ah Lead-Acid
Tyre Size	3.75-12 / 4.00-12

All specifications are certified values per EU Regulation 168/2013. Contact us for COC (Certificate of Conformity) and wholesale pricing.

Variant B — ZB1624 Canopy

EEC CERTIFIED
EU Whole Vehicle Type Approval

Vehicle Model	ZB1624 Canopy
EEC Type-Approval No.	*e5168/20130022103**
Version	03
EU Vehicle Category	L2e-U
Dimensions (L×W×H)	3180 × 1170 × 1815 mm
Cargo Box (L×W×H)	1365 × 1030 × 470 mm
Wheelbase	2050 mm
Rear Track Width	980 mm
Unladen Mass	264 kg
Actual Mass	430 kg
Max Permissible Mass	635 kg
Front Axle Max Load	240 kg
Rear Axle Max Load	395 kg
Axles / Wheels	2 axles / 3 wheels
Braking System	Front disc + rear drum + parking brake
Max Speed	40 km/h / 25 km/h
Motor	Nanpu 1500W / 72V (optional 3000W / 60V)
Battery	72V/58Ah Lead-Acid (optional 64V/100Ah Lithium)
Tyre Size	110/90-16 / 4.00-12

Configuration (Variant A — ZB1524E Canopy)

Loading Capacity	500 kg
Curb Weight	262 kg
Cargo Box (L×W)	1500 × 1000 mm
Motor Power	72 V · 1500 W
Front / Rear Tire	3.75-12 / 4.00-12
Battery	58 Ah Lead-acid
Max Speed	40 km/h

Configuration (Variant B — ZB1624E Canopy)

Loading Capacity	500 kg
Curb Weight	232 kg
Cargo Box (L×W)	1600 × 1100 mm
Motor Power	72 V · 1500 W
Front / Rear Tire	110/90-16 / 4.00-12
Battery	58 Ah Lithium-ion
Max Speed	40 km/h
