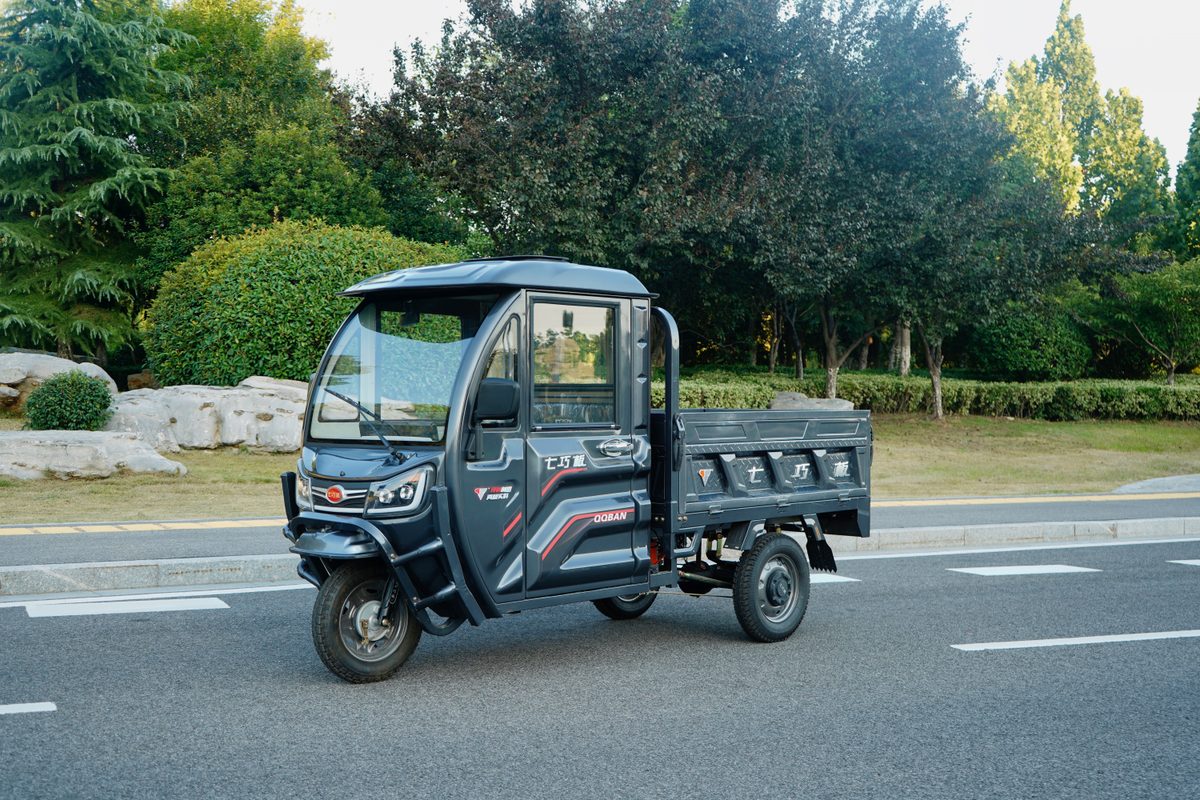

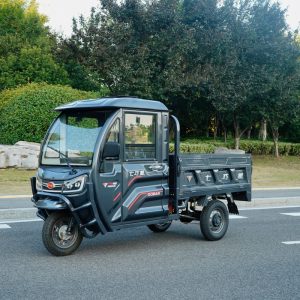

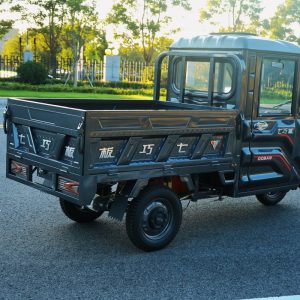

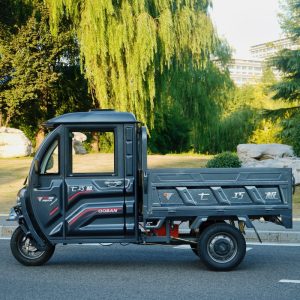

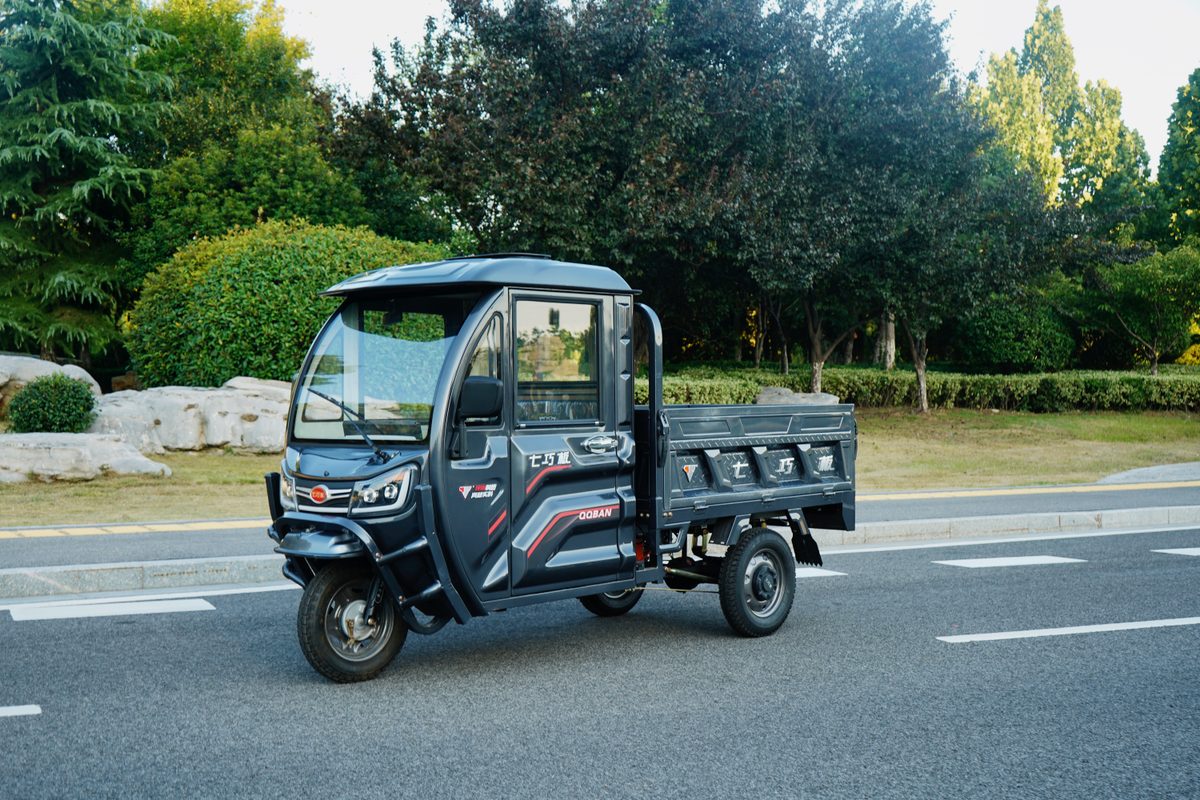

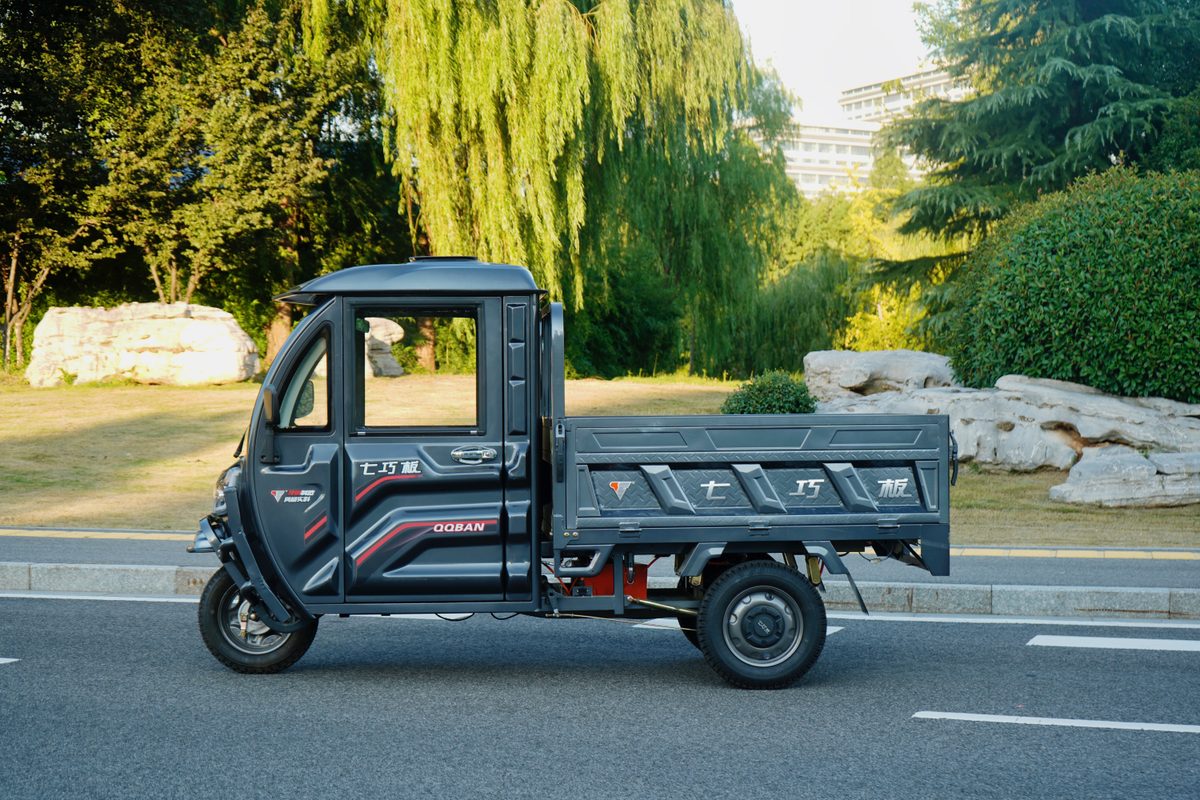

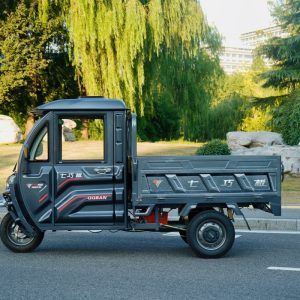

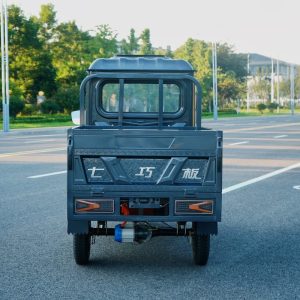

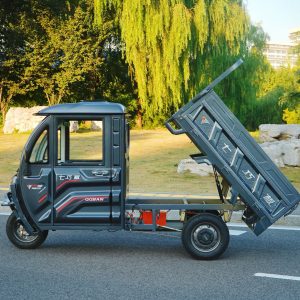

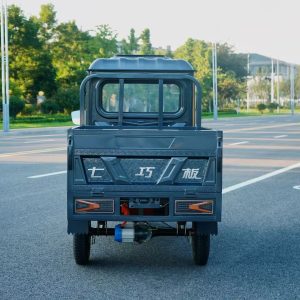

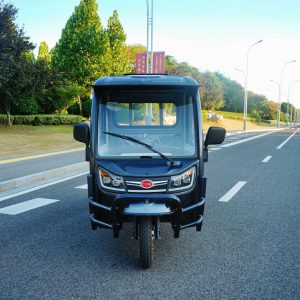

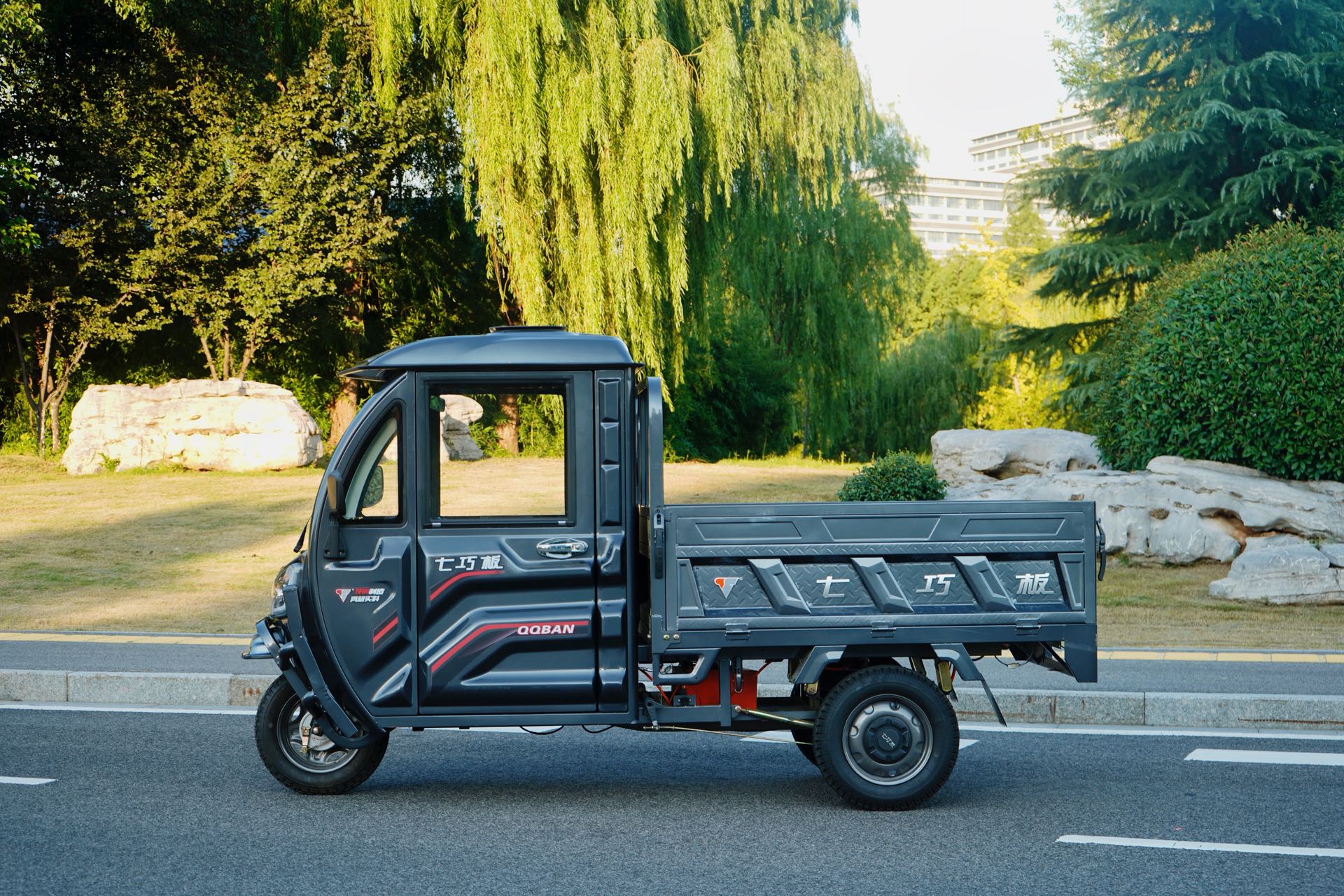

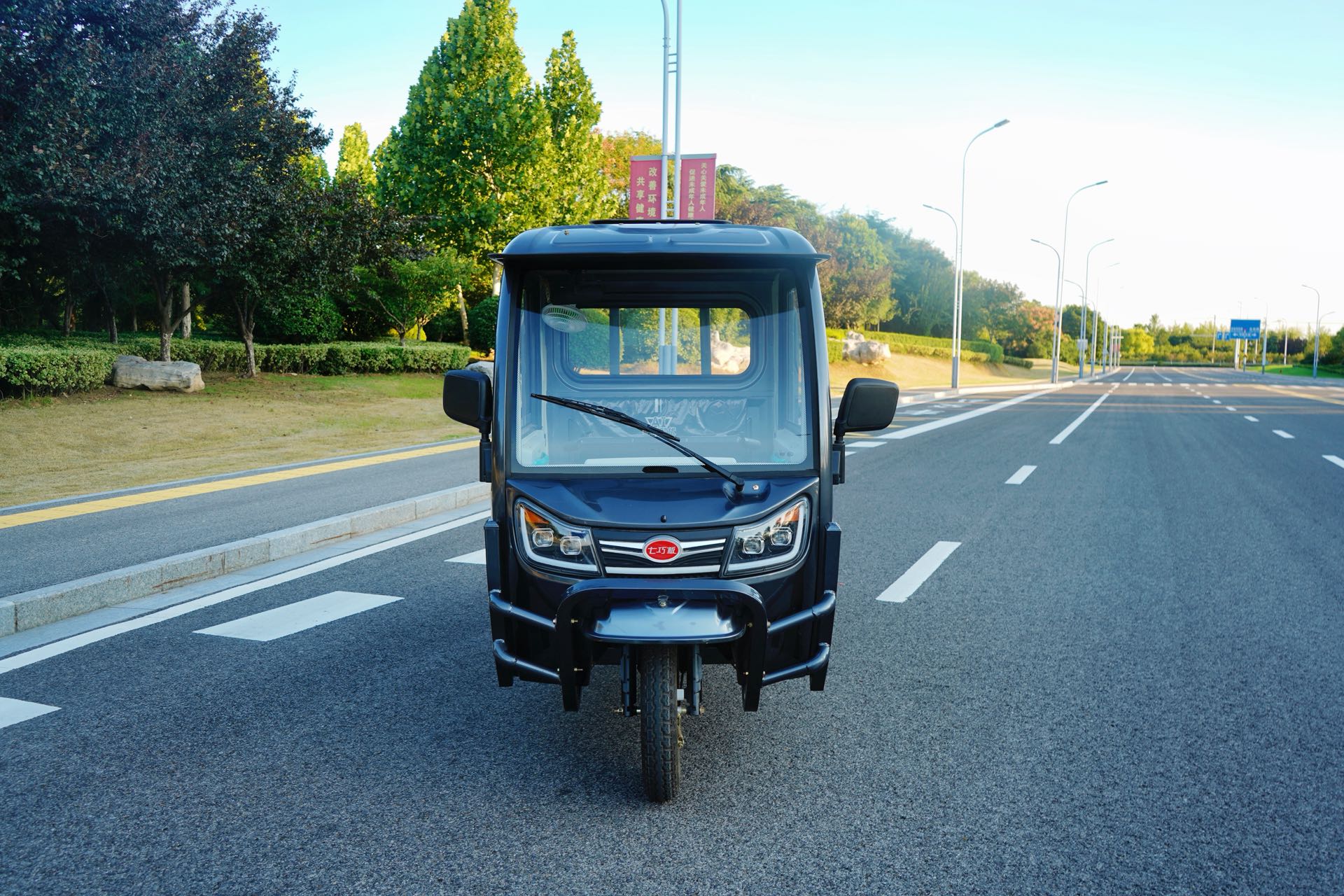

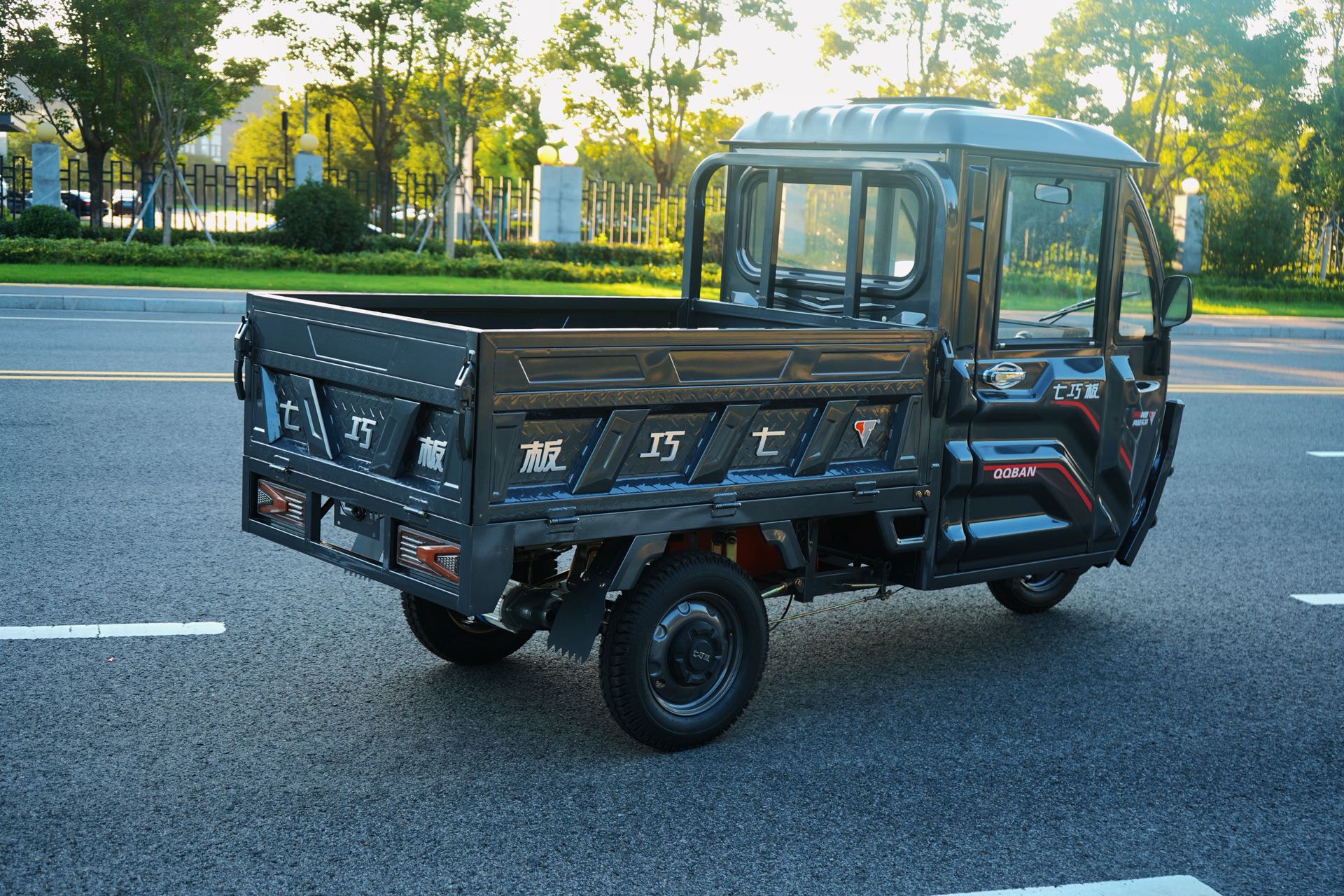

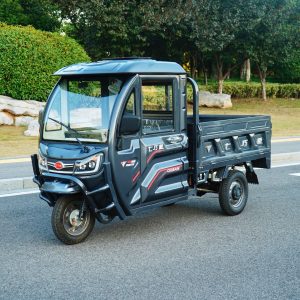

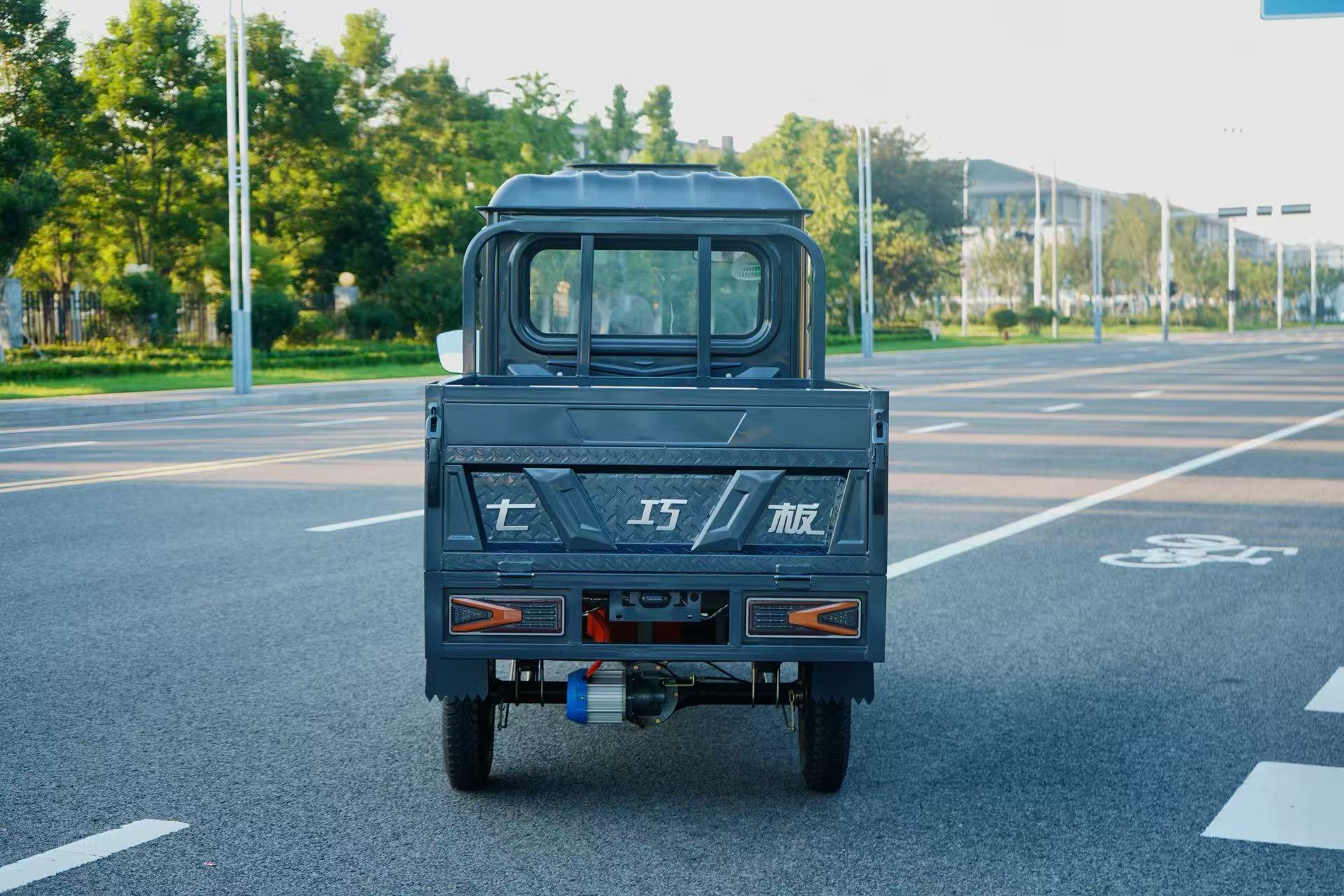

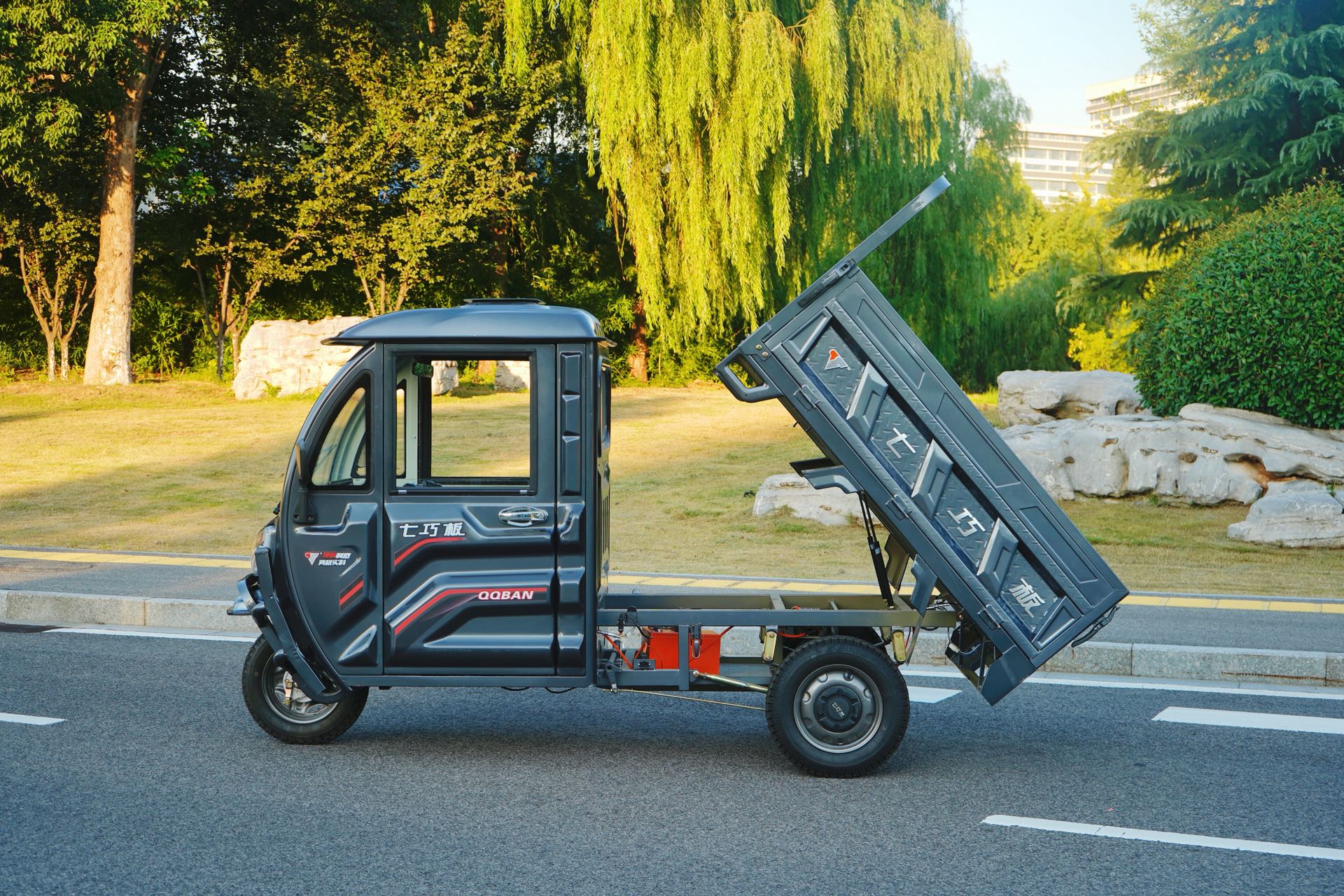

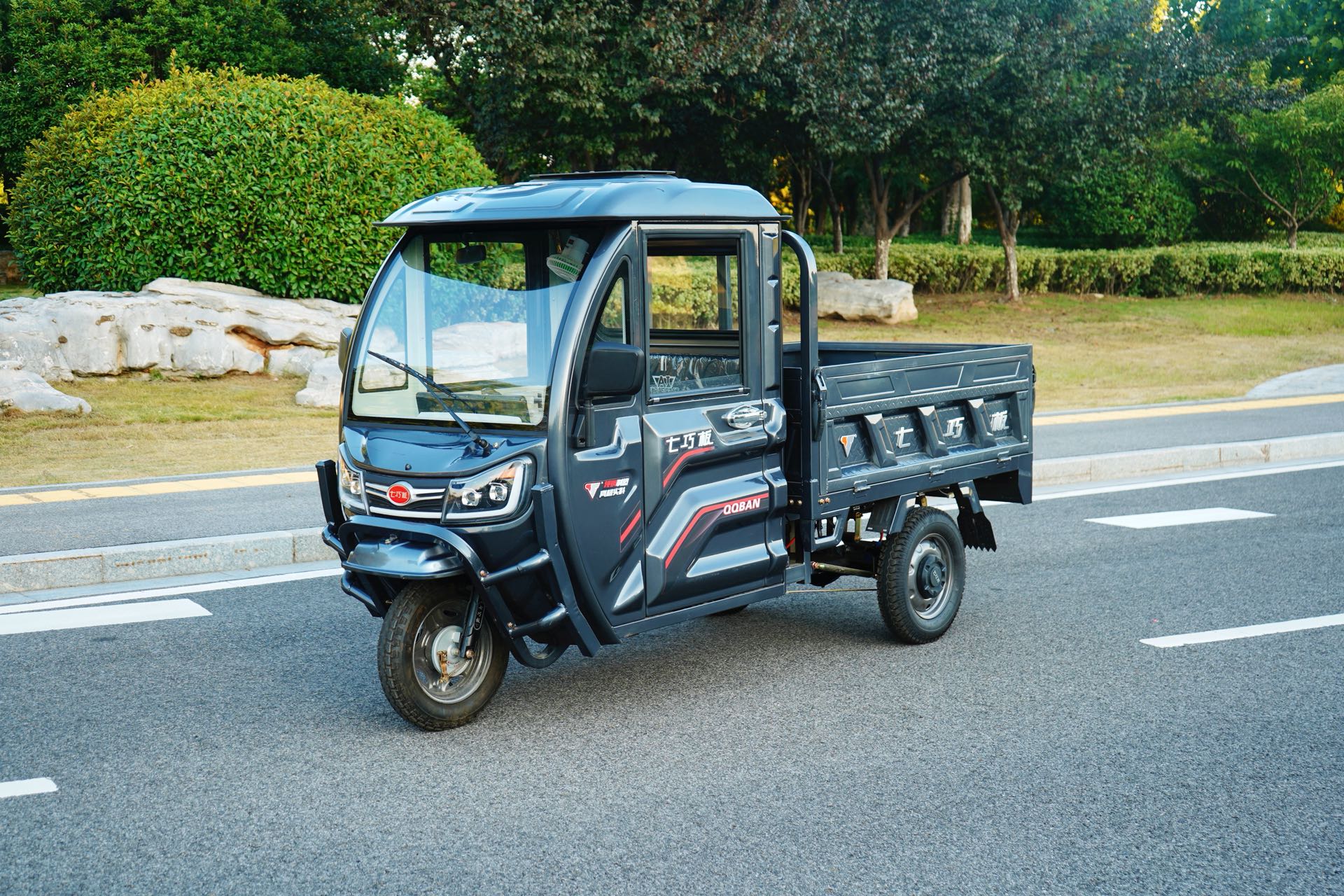

ZB1524 Pro
Heavy-duty cargo tricycle — EEC L5e-B certified. 776kg max payload, 1200×920mm cargo box, 1500W/3000W motor options, lead-acid or lithium battery.
The ZB1524 Pro is our flagship EEC-certified cargo tricycle (L5e-B) for European wholesale buyers. A larger 1200×920mm cargo box, 776kg permissible payload and dual motor/battery configurations make it adaptable to logistics, vending and utility fleets in Romania, Turkey, Italy, Germany and Austria.
EEC CERTIFIED
EU Whole Vehicle Type Approval
EU Whole Vehicle Type Approval
| Vehicle Model | ZB1524 Pro |
| EEC Type-Approval No. | e5*168/2013-00276-00 |
| Version | 00/01/02 |
| EU Vehicle Category | L5e-B |
| Dimensions (L×W×H) | 3035 × 1080 × 1720 mm |
| Cargo Box (L×W×H) | 1200 × 920 × 490 mm |
| Wheelbase | 2050 mm |
| Rear Track Width | 860 mm |
| Unladen Mass | 314 kg |
| Actual Mass | 479 kg |
| Max Permissible Mass | 776 kg |
| Front Axle Max Load | 241 kg |
| Rear Axle Max Load | 535 kg |
| Axles / Wheels | 2 axles / 3 wheels |
| Braking System | Drum / Disc brake |
| Max Speed | 40 km/h / 25 km/h |
| Motor | Nanpu 1500W / 72V (optional 3000W / 60V) |
| Battery | 72V/58Ah Lead-Acid (optional 64V/100Ah Lithium) |
| Tyre Size | 3.75-12 / 4.00-12 |
Upgraded variant: ZB1524 Pro-NEW (e5*168/2013-00276-03, v03): max laden 752kg, front 252kg / rear 500kg
All specifications are certified values per EU Regulation 168/2013. Contact us for COC (Certificate of Conformity) and wholesale pricing.
Configuration
| Loading Capacity | 500 kg |
| Curb Weight | 314 kg |
| Cargo Box (L×W) | 1500 × 1000 mm |
| Motor Power | 72 V · 1500 W |
| Front / Rear Tire | 3.75-12 / 4.00-12 |
| Battery | 58 Ah Lead-acid |
| Max Speed | 40 km/h |
